Description | Total Sections | Height MM | Width | WIDTH MM | Depth MM | Watts Δt50°c | BTU's Δt50°c | Pipe Centres From Wall | Bore Centre's | Water Capacity |

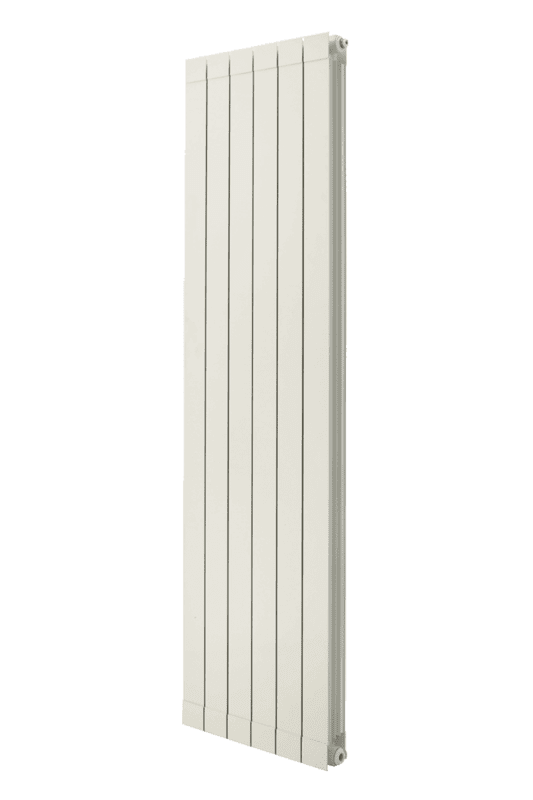

Aluminium Flat Top 1246 x 3 Sections | 3 | 1246 | 80 | 264 | 95 | 654 | 2231 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 4 Sections | 4 | 1246 | 80 | 344 | 95 | 872 | 2975 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 5 Sections | 5 | 1246 | 80 | 424 | 95 | 1090 | 3719 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 6 Sections | 6 | 1246 | 80 | 504 | 95 | 1308 | 4463 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 7 Sections | 7 | 1246 | 80 | 584 | 95 | 1526 | 5207 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 8 Sections | 8 | 1246 | 80 | 664 | 95 | 1744 | 5951 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 9 Sections | 9 | 1246 | 80 | 744 | 95 | 1962 | 6694 | 67mm-71mm | 1200 | 0.49 |
Aluminium Flat Top 1246 x 10 Sections | 10 | 1246 | 80 | 824 | 95 | 2180 | 7438 | 67mm-71mm | 1200 | 0.49 |
Technical & Service Details | ||||||
Section Width: | 80mm | |||||
Section Depths: | 95mm | |||||
Bush Width: | ||||||
Single | 10mm | |||||
2 Bushes | 20mm | |||||
Maximum Operating Pressure: | 6 Bar | |||||
Maximum Operating Temp: | 110°C | |||||
Outputs: | Shown at Delta T50 & Watts | |||||
Certified: | EN442 Compliant | |||||
Colour Options: | ||||||
White | RAL 9010 (Powder Coat) | |||||
RAL | 25 RAL Colours (Powder Coat) | |||||
Special Finishes | 32 Special Finishes (Powder Coat) | |||||
Graphex (Powder Coat) | ||||||
Connections: | ||||||
Bushes | 4 x Open Bushes, 1 x Airvent, 1 x Blanking Plug | |||||
Standard Bush Sizing | 1" 1/4 into 1/2" | |||||
Standard Connection | Bottom Opposite End (BOE) | |||||
Diverter Supplied | Supplied as requested | |||||
Packaging & Delivery | ||||||
All Finishes | ||||||
External: | Boxed | |||||
Internal: | Wrapped in Polythene | |||||
Labelling: | OEM Production Label only (unbranded) | |||||
Label details size, number of sections and colour | ||||||
Fittings Instructions: | OEM Fitting Instructions only (unbranded) | |||||
Delivery Costs: | A carriage charge is applicable for Direct deliveries | |||||
Delivery Times: | ||||||
Stock White | 3-5 Working Days | |||||
RAL/Special Finish | 15 Working Days |
Brand | ALUFL |
Code | ALUFL12X3 |
Weight | 10kg |
Height | 1246MM |
COLOR | White |
Watts | 3 W |
